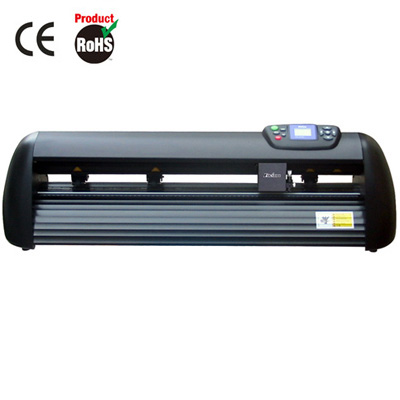

Vinyl Cutter C24
| Advisory order: |  |
| Parameter: | |
| Description: | Advanced DSP Motion Control System, high speed yet without zigzag, perfect orbicular cutting, low noise operation |
Detail
Product Features
 Advanced DSP Motion Control System, high speed yet without zigzag, perfect orbicular cutting, low noise operation |
 USB interface to connection computer also support hot-plug |
 64M buffer can long time working divorce from computer |
 LED positioning, contour cut function( Optional ) |
 10 silica gel buttons, easy-to-use and durable |
 User-friendly Design , allows to adjust cutting force and working speed while |
 Adopts high-precision steel axes ,can prevent slipping while cutting long materials |
 4*8 high resolution LCD back light display , suitable for different work surroundings |
 Delicate, high strength aluminium alloy body |
 Ultra press, capable of punching thick engineering materials |
 C24 Vinyl Cutter Stand Optional |
Specifications
| Model | C24 |
| Acceptable Media Width | 720mm |
| Max.Cutting Width | 620mm/24Inch |
| Mainboard | DSP Processor，64M Flash |
| Interface | USB2.0，RS232C |
| Control Panel | 10Silica gel buttons |
| Driver | Digital Control Servo Motor |
| Display | 4*8 High Resolution LCD |
| Drawing Instruction | HP-GL，HP-GL/2，DMPL |
| Max. Cutting Speed | 900mm/s |
| Max. Cutting Thickness | 1mm |
| Pressure |
50g~800g
|
| Mechanical Precision(mm) | 0.014mm |
| Repeat Accuracy | 0~1.0mm |
| Power Supply | AC90~240V/50Hz~60Hz |
| Power Consumption | <100VA |
| Work Mode | Roller |
| Operating Environment | Temperature:+5℃-35℃,Relative Humidity:30%-70% |
| Support Mode | Desktop/Stand (Optional) |
| Weight(kg) | 12kg |
| Dimension(mm) | 890*265*270 |
